Static switches

Static switches

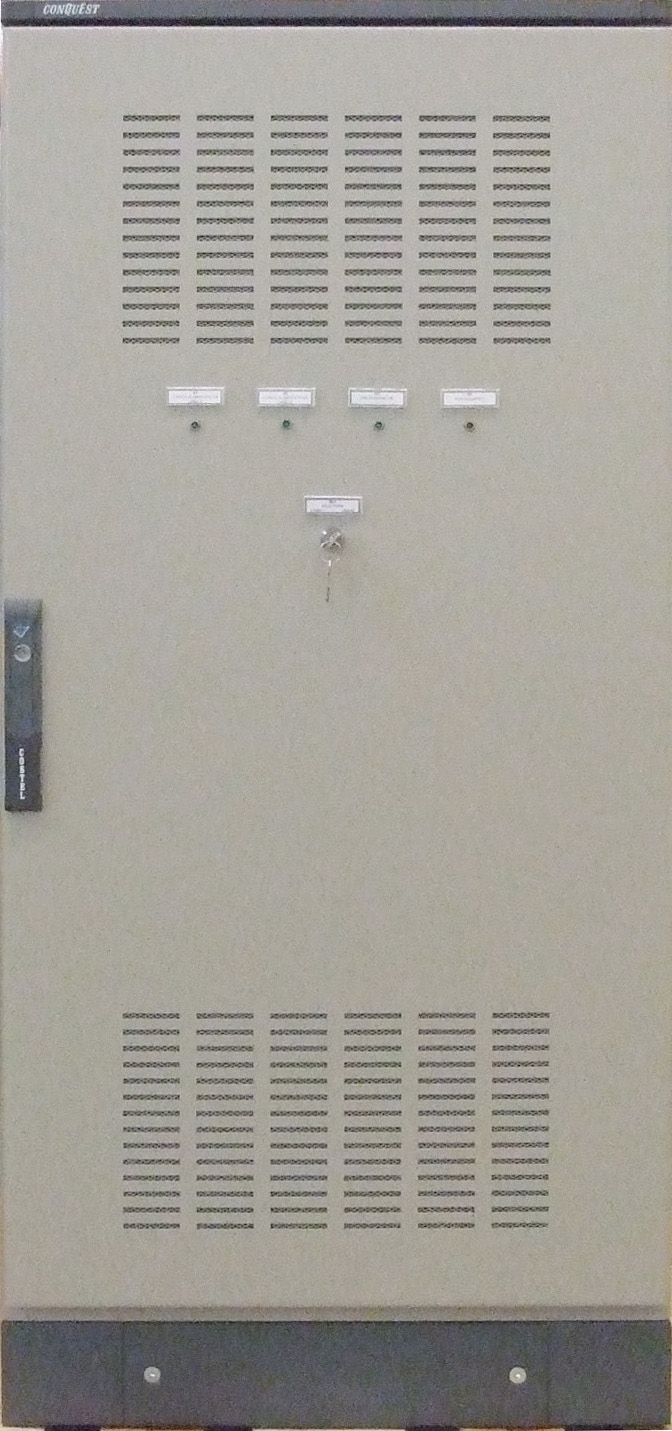

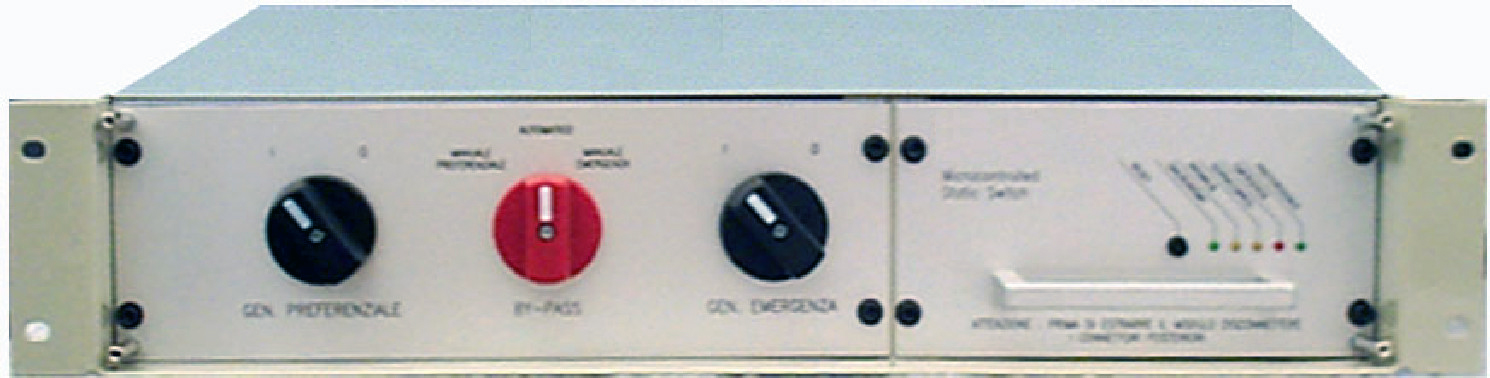

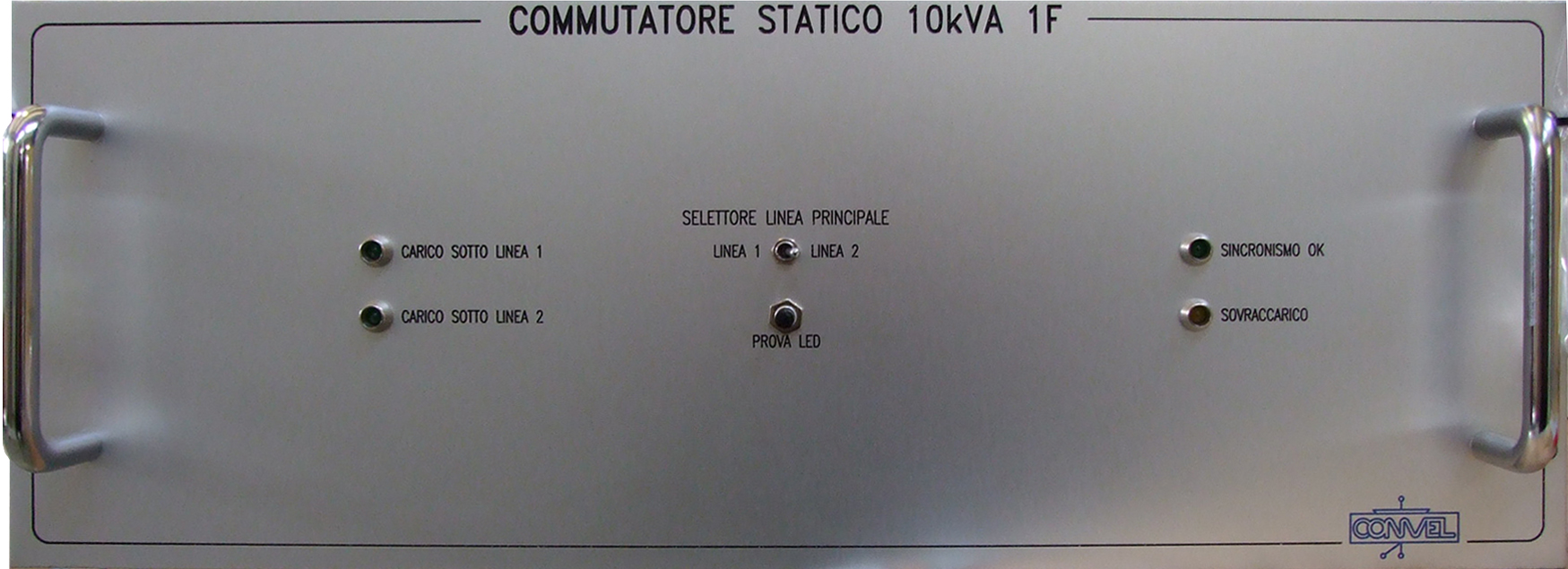

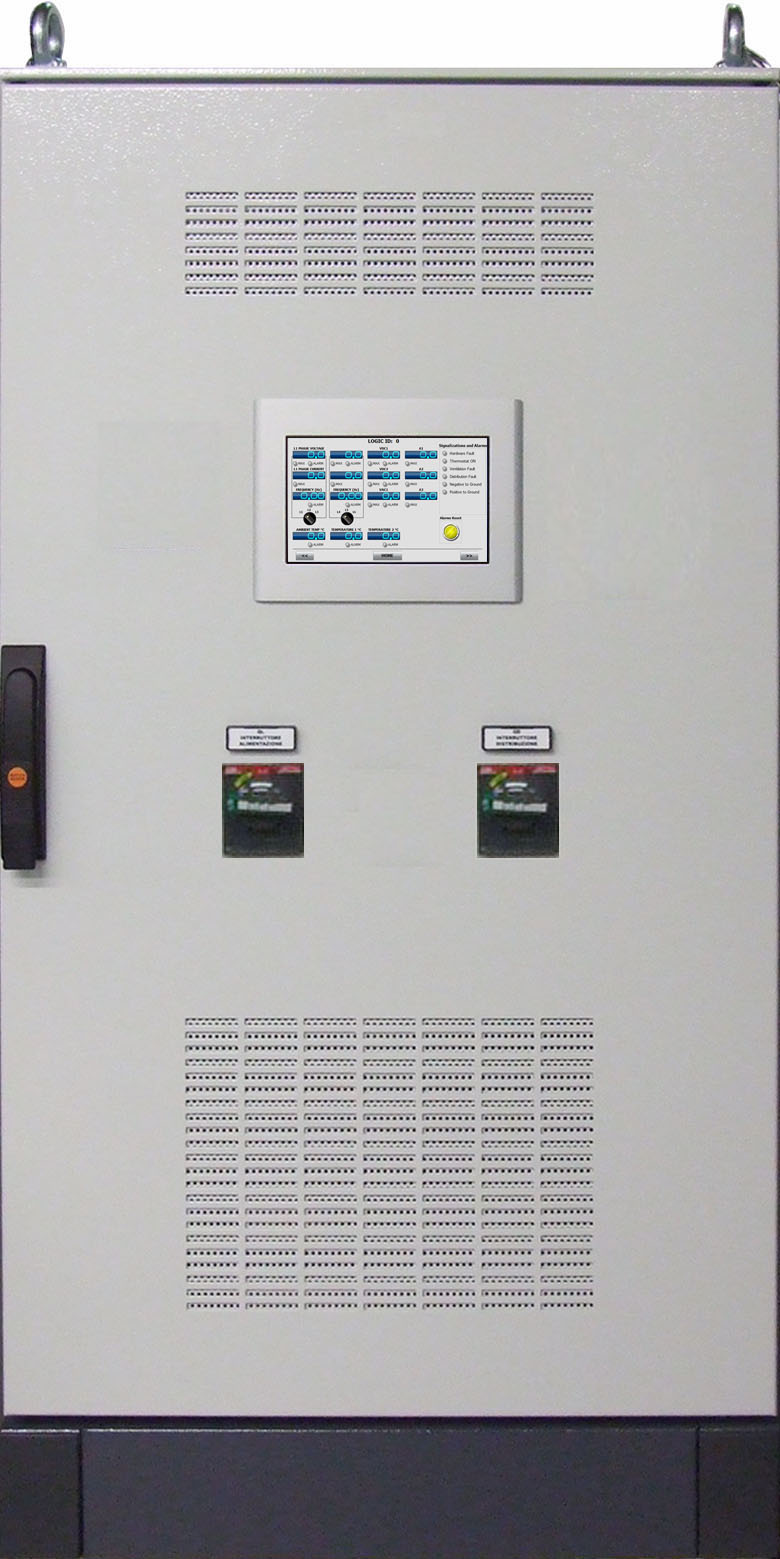

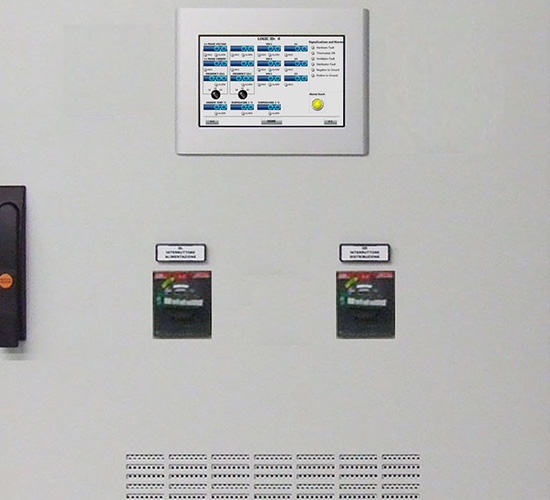

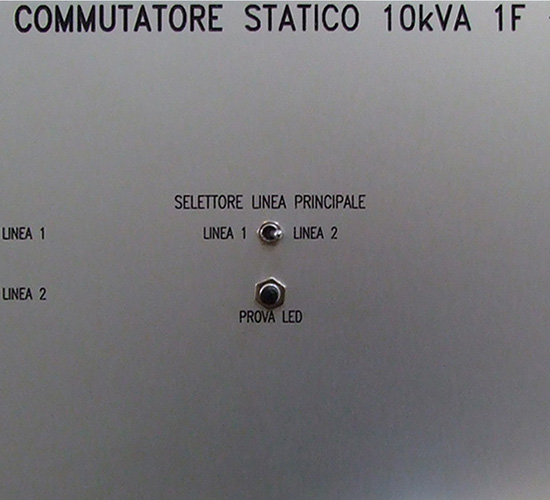

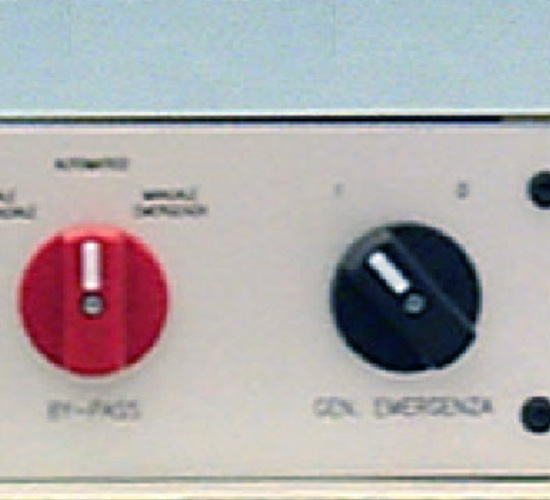

They cover an output power range from 1kVA up to 200kVA, single and three phase. They are supplied in Rack 19" or in steel cabinet with protection degree on request. Thanks to its fully digital control are ensuring high performances increasing the reliability of the all systems where are installed.

GENERAL TECHNICAL CHARACTERISTICS

Input: : single or three phase 110-230-400 Vac 50-60 Hz
Switching Time: zero (≤ 2mS)
Neutral: pass-through (switchable on request)
Output Power: 1÷200 kVA
Operating: line 1 priority, line 2 reserve with possibility of reverse the logic operating mode, line synch control and control card microprocessor based
Mechanical Solution: in rack 19" or steel cabinet (IP on request)
Manual By-Pass: available only under request
